22 11 110 Replacing left engine support arm (N20)

Necessary preliminary tasks:

• Secure engine in INSTALLATION POSITION .
• Remove CHARGE AIR GUIDE at throttle body and set aside.

Slacken nut (2).

Remove ground strap from engine support.

Release bolts (1) and remove engine support arm (3).

Tightening torque 22 11 3AZ .

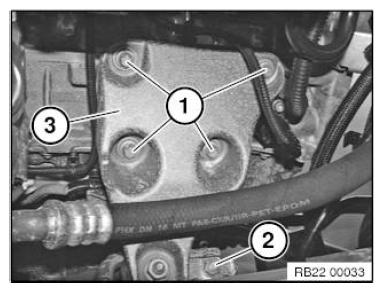

Fig 1: Identifying Engine Support Arm Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
