22 11 100 Replacing right engine support arm (N20)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Secure engine in INSTALLATION POSITION .
- Remove front UNDERBODY PROTECTION .

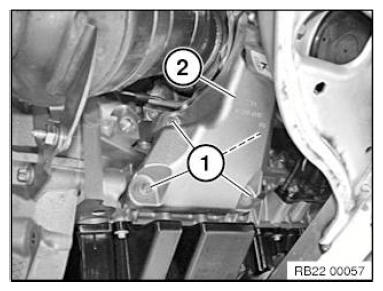

Release screws (1).
Tightening torque 22 11 3AZ .
Remove engine support arm (2).
