111050 Fitting aid AM

WARNING: This page is about a different variant/trim than selected.

NOTE: (Mounting accessory) For removing and installing the valve springs Replaced by 119000

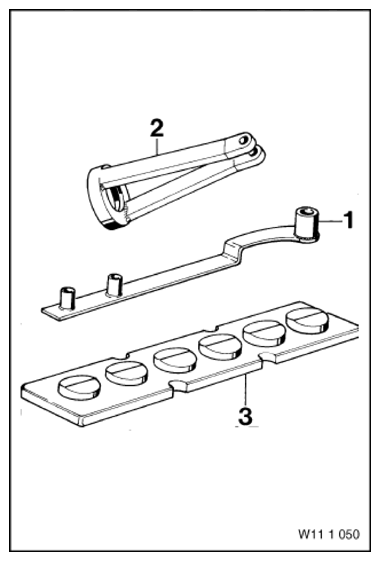

Fig 1: Identifying Fitting Aid AM (111050)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0490692 Clip

NOTE: (Guide bracket, cropped) Engine: S38

2 = 0490693 Basket

NOTE: (Valve spring cage) Engine: S14, S38, M50

3 = 0490694 oddments tray

NOTE: (Board) Engine: S14, S38

9 = 0490695 Nut

NOTE: (Nut (4 pieces) for pressure frame) Engine: M20, M30
