13 62 560 Removing and installing/replacing hot film air mass meter (N20)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release connector (1) on hot film air mass meter and disconnect.

Unfasten screws (2).

Tightening torque 13 71 6AZ .

Remove the hot film air mass meter (3).

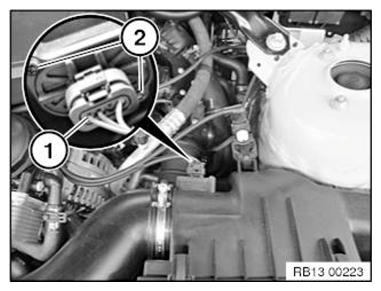

Fig 1: Identifying Connector On Hot Film Air Mass Meter

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Delete fault memory.
