13 71 000 Removing and installing/replacing intake silencer housing (N20): Notes

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release clamp (1).

Tightening torque 13 71 3AZ .

Unlock connector (2) on hot film air mass meter and disconnect.

Undo the electric changeover valve (3) from the intake silencer housing.

Release screws (4).

Tightening torque 13 71 2AZ .

Pull intake silencer housing (5) off rubber mounts in an upward direction and remove.

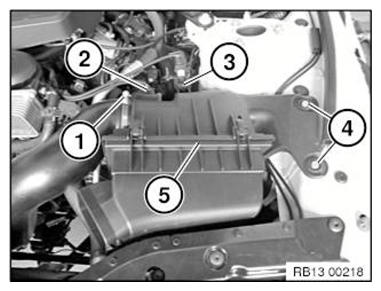

Fig 1: Identifying Intake Silencer Housing, Electric Changeover Valve And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
