12 31 020 Removing and installing or replacing alternator (N20)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: In order to remove the alternator, it is necessary to remove the air conditioning compressor.
In so doing:

Do not draw off A/C system refrigerant.
Do not detach refrigerant lines from A/C compressor.
Do not remove A/C compressor; instead, remove from bracket only and place to one side.
Release AIR CONDITIONING COMPRESSOR and set aside.

Open the holder (1) with suitable tools.

Clip refrigerant line (2) out of holder (1).

Installation note:

Check that the refrigerant line (2) is correctly seated in the holder (1)!

Fig 1: Identifying Refrigerant Line And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

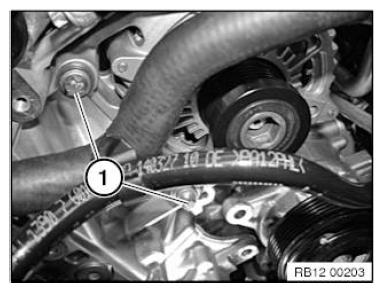

Release screws (1).

Tightening torque 12 31 1AZ .

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and remove.

Release nut (2) and remove the positive battery cable.

Tightening torque 12 42 1AZ .

Disconnect tank ventilation line (3) and place to one side.

Feed out alternator (4) to the left and remove.

Fig 3: Identifying Alternator, Tank Ventilation Line And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
