240150 Clip AM

WARNING: This page is about a different variant/trim than selected.

NOTE: (Mounting bracket) For mounting the transmission on the assembly stand

Consisting of:

6 = 0493913 Spindle

NOTE: With synchronizing key, transmission: All

3 = 0491645 Shaped part

NOTE: (Shaped part) For mounting the transmission/transmissions: A5S 310Z

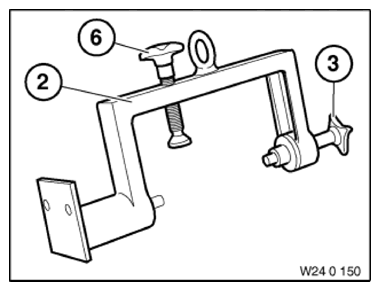

Fig 1: Identifying Clip AM (240150)

Courtesy of BMW OF NORTH AMERICA, INC.

2 = 0491646 Frame

NOTE: (Main frame)

3 = 0491647 Spindle

NOTE: (Spindle with rotary handle)

3 = 0491648 Bolt

NOTE: (Mounting bolts)

3 = 0491649 Bush

NOTE: (Spacer bush for spindle) Transmissions: A4S 310R
