17 22 010 Removing and installing/replacing transmission oil cooler for automatic transmission

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Risk of scalding!
Only perform this repair work after engine has cooled down.

Necessary preliminary tasks:

Recycling

Catch and dispose of drained coolant in a suitable container.

Transmission oil emerges when fluid lines are detached from transmission oil cooler.

Catch and dispose of escaping transmission oil in a suitable container.

Observe country-specific waste disposal regulations.

If fitted:

Release screws (1).

Remove cover (2).

Fig 1: Identifying Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release and disconnect coolant hoses (1).

Unlock transmission oil lines (2) and detach.

Release screw (3).

Tightening torque 17 10 6AZ .

Remove transmission oil cooler (4).

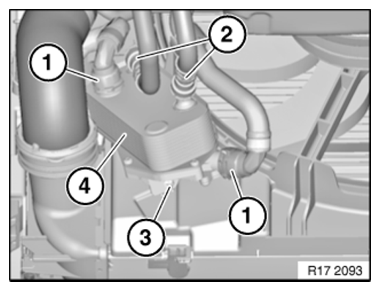

Fig 2: Identifying Coolant Hoses, Transmission Oil Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Assemble engine.
Check OIL LEVEL in automatic transmission. If necessary, top up automatic transmission oil.
