51 64 020 Removing and installing/replacing top rear connection: Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Tightening torque 51 61 4AZ .

Detach rear connection (2) from front connection (3).

Installation:

Guide lug secures rear connection (2) to front connection (3).

Fig 1: Identifying Rear, Front Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only if replacing front connection (3):

Modify plug (1) and retaining clip (2).

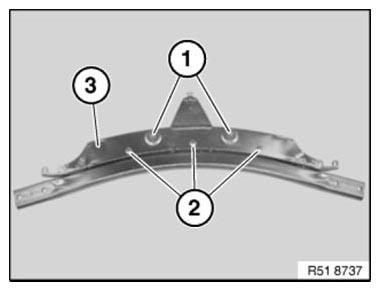

Fig 2: Identifying Plug, Front Connection And Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.
