51 31 242 Replacing rubber frame (bottom) for rear window

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH TRIM STRIPS FROM ROOF FRAME

IMPORTANT: Rubber frame (1) is reinforced with an aluminium strip.
Pull off rubber frame (1) carefully in direction of arrow (rear window breakage).

NOTE: Tear-off tab on left/right may be bonded to adhesive.
When rubber frame (1) is removed, tear-off lip on left/right may tear off and remain in vehicle.

Installation:

Gap (A) between rubber frame (1) and rear window corner (2) must be the same on left/right.

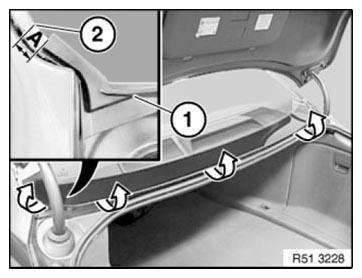

Fig 1: Removing Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement of rubber frame without rear window removal:

Detach tear-off tabs (2) from rubber frame (1).

If adhesive has managed to get onto bridge, this area must be cut out partially.

Replacement of rubber frame with removed or new rear window:

Fit rubber frame with tear-off tabs (2).

3 Aluminium strip

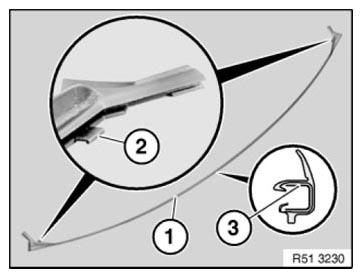

Fig 2: Identifying Rubber Frame, Aluminium Strip And Tear-Off Tabs

Courtesy of BMW OF NORTH AMERICA, INC.
