11 22 510 Removing and installing/replacing flywheel (transmission removed - N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRANSMISSION .

Secure flywheel (1) with special tool 11 9 260 , 11 9 263 and 11 9 264 .

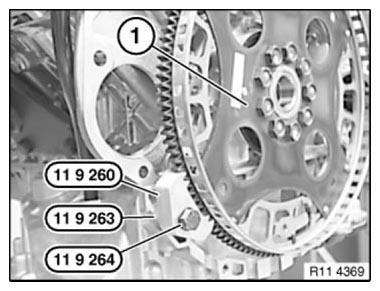

Fig 1: Securing Flywheel Using Special Tool 11 9 260, 11 9 263 And 11 9 264

Courtesy of BMW OF NORTH AMERICA, INC.

Release flywheel screws in area (1).

Remove flywheel (2).

Installation:

Clean threads on flywheel screws in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit flywheel (2).

Fit new flywheel screws .

Tightening torque: see 1AZ in 11 22 FLYWHEEL

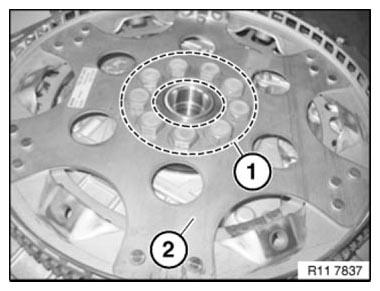

Fig 2: Identifying Flywheel And Screws Area

Courtesy of BMW OF NORTH AMERICA, INC.
