00-2550 Measurement aid

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

0490189 002550 Measurement aid MW

NOTE: (Depth gauge) E.g. for determining side clearance of transmission shaft and basic adjustment dimension for installing bevel pinion in rear axle differential [released]

Storage Location

B5

A5

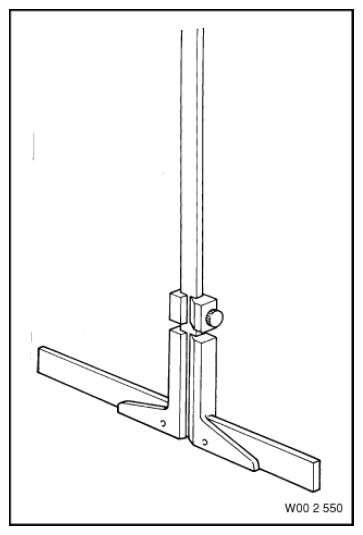

Fig 1: Identifying Measurement Aid (0490189)
G08489550Courtesy of BMW OF NORTH AMERICA, INC.
