51 21 125 Removing and installing/replacing support for left or right outer door handle with lock barrel

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove OUTER DOOR HANDLE .
Remove DOOR LOCK .
Remove TRIM ON WINDOW FRAME OF FRONT DOOR .

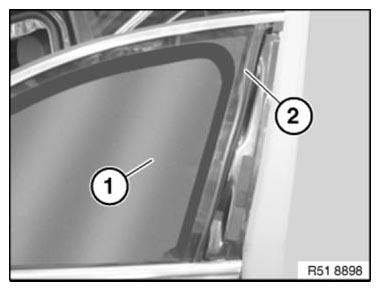

Close side window (1); in so doing, do not crush or pinch rubber guides (2).

Fig 1: Identifying Pinch Rubber Guides And Window

G06885531

Courtesy of BMW OF NORTH AMERICA, INC.

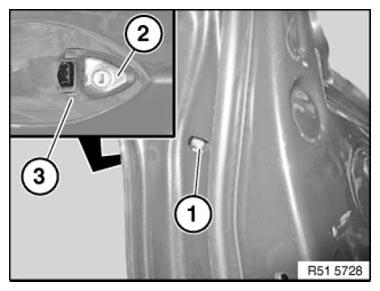

Release screw (1) on cap (2).

Remove cap (2).

Installation note:

Rubber seal (3) must sit correctly in guides on door outer skin.

Fig 2: Identifying Cap, Rubber Seal And Screw

G06885532

Courtesy of BMW OF NORTH AMERICA, INC.

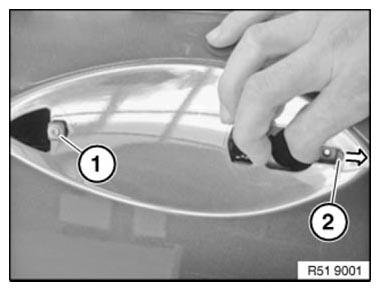

Release retaining screw (1).

Remove plastic guide underneath.

Installation note:

Correctly insert retaining lug (2) and move to stop.

Fig 3: Removing Plastic Guide

G06885533

Courtesy of BMW OF NORTH AMERICA, INC.

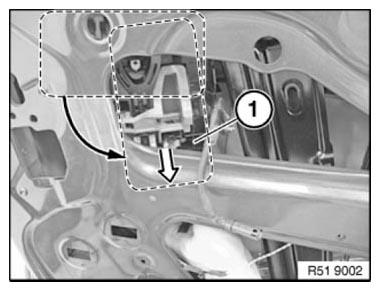

Turn carrier for door outside handle (1) approx. 90° and feed out below.

Installation note:

Ensure correct Bowden cable installation position.

Fig 4: Turning Door Outside Handle Carrier

G06885534

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

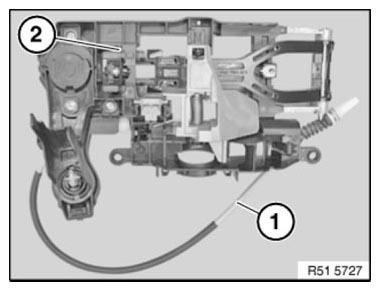

Feed Bowden cable (1) out of carrier (2).

If required, modify LOCK BARREL .

Fig 5: Identifying Bowden Cable And Carrier

G06885535

Courtesy of BMW OF NORTH AMERICA, INC.
