51 11 158 Replacing base plate for number/license plate

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Only use the vehicle-specific license plate baseplate.

The installation of other license plate baseplates is not permissible.

If a number plate baseplate is not offered for the corresponding national-market version, the number plate must be mounted directly on the bumper using a drilling template

Release screws (1).

Remove holder (2) towards front.

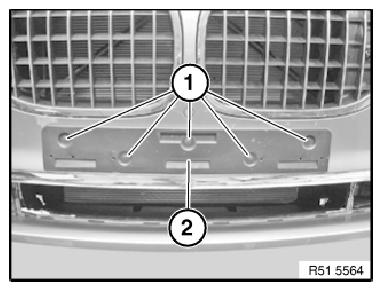

Fig 1: Identifying Holder And Screws
G08511313Courtesy of BMW OF NORTH AMERICA, INC.
