66 20 536 Removing and installing/replacing a rear middle left ultrasonic transducer (Park Distance Control)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

Unlock retaining tabs (1) in direction of arrow and pull ultrasonic transducer (2) out of holder (3).

Fig 1: Opening Ultrasonic Transducer Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).

Fig 2: Identifying Ultrasonic Transducer With Hooks And Mountings

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

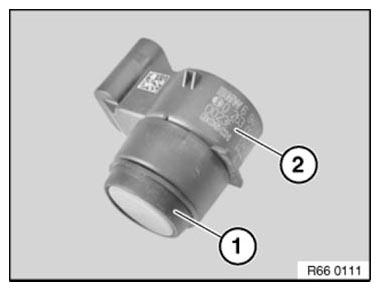

Make sure rubber ring (1) is correctly seated on ultrasonic transducer (2).

Fig 3: Identifying Ultrasonic Transducer With Rubber Ring

Courtesy of BMW OF NORTH AMERICA, INC.
