66 20 534 Removing and installing/replacing a rear left ultrasonic transducer (Park Distance Control)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten plug connection (1) and disconnect.

Unclip ultrasonic transducer (2) from retaining lugs.

Installation:

Retaining lugs must not be damaged!

Make sure ultrasonic transducer (2) is securely seated.

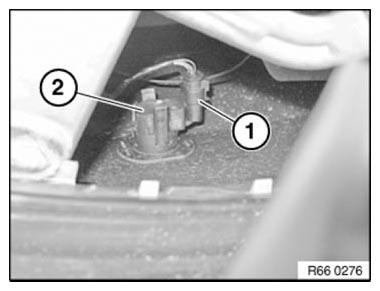

Fig 1: Identifying Ultrasonic Transducer With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure rubber ring (1) is correctly seated on ultrasonic transducer (2).

Fig 2: Identifying Rubber Ring And Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.
