65 20 420 Removing and installing/replacing aerial of Global Positioning System (GPS)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove ROOF SWITCH CLUSTER

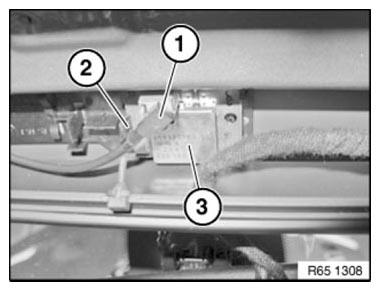

Unfasten plug connection (1) and disconnect.
Unlock retaining lug (2).
Remove GPS aerial (3).
