65 20 410 Removing and installing/replacing DAB tuner aerial

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ROOF SWITCH CLUSTER

Disconnect plug connection (1).

Unclip DAB tuner aerial (2) and remove.

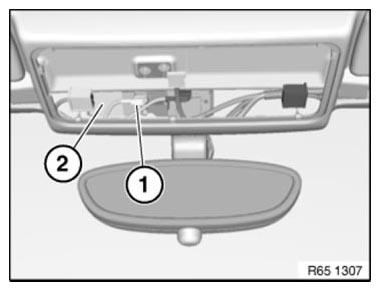

Fig 1: Identifying DAB Tuner Aerial With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
