65 20 405 Removing and installing/replacing aerial for Satellite Digital Audio Radio Service (SDARS)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AUXILIARY BRAKE LIGHT REAR LID COVER

Release nut (1) on underside of rear lid.

Unfasten aerial plug (2) and disconnect.

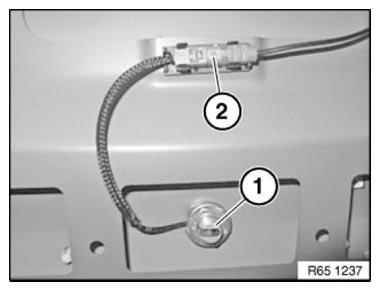

Fig 1: Identifying Aerial Plug And Nut On Underside Of Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Lever SDARS aerial (1) upwards out of rear lid.

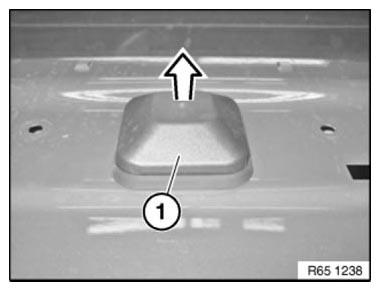

Fig 2: Removing SDARS Aerial

Courtesy of BMW OF NORTH AMERICA, INC.
