65 20 300 Removing and installing/replacing bumper aerial (FM)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM
Remove LUGGAGE COMPARTMENT TRIM ON SIDE PANEL

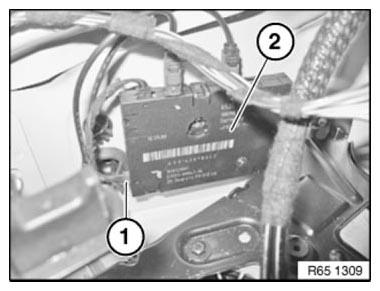

Disconnect plug connection (1) on aerial amplifier (2).

Fig 1: Identifying Plug Connection On Aerial Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

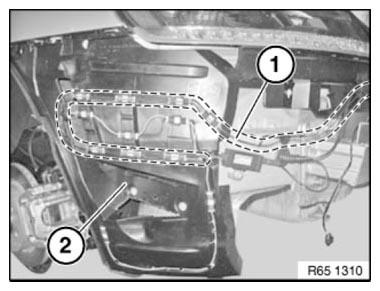

Unclip FM aerial (1) from left bumper carrier (2).

Fig 2: Identifying FM Aerial And Left Bumper Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

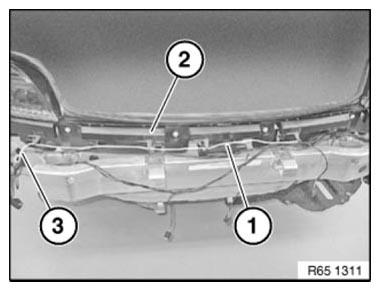

Unclip FM aerial (1) from holders on bumper guide (2).

Feed FM aerial (1) out of penetration (3) and remove.

Installation:

Make sure FM aerial is laid correctly.

Fig 3: Identifying FM Aerial And Bumper Guide

Courtesy of BMW OF NORTH AMERICA, INC.
