65 20 165 Removing and installing/replacing left TV aerial
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove REAR BUMPER TRIM

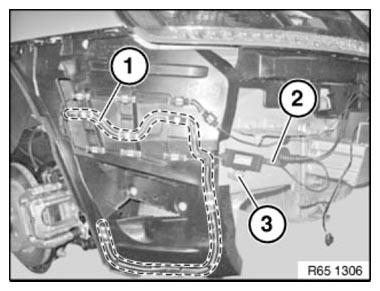

Unclip TV aerial (1).
Unfasten plug connection (2) and disconnect.
Release screw (3).
Remove TV aerial (1).
Installation:
Make sure TV aerial (1) is correctly laid.
