65 83 020 Removing and installing (replacing) Car Information Computer (CIC)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION ).

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Necessary preliminary work

Clamp off NEGATIVE BATTERY CABLE

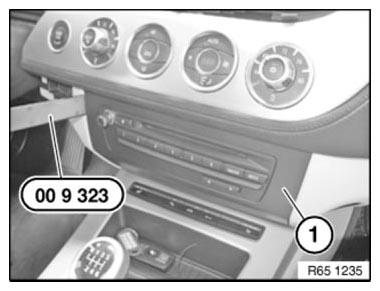

Unclip middle trim (1) with special tool 00 9 323.

Fig 1: Opening Middle Trim Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

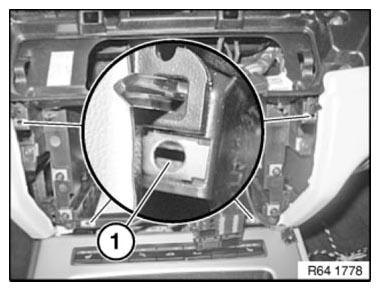

Retainers (1) must be correctly seated and must not be damaged!

Fig 2: Identifying Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Cover center console to prevent damage and scratching.

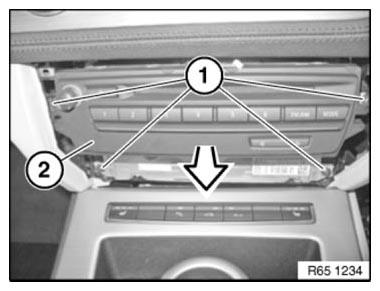

Release screws (1).

Carefully pull out CIC (2) towards front.

Unlock associated plug connections and disconnect.

Fig 3: Pulling Out CIC Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Only for US models with satellite tuner:

When replacing the CIC unit, additional work is required!

Read the document REPLACING SATELLITE TUNERS FROM 09/2009 ONWARD .

Replacement:

Carry out vehicle programming/coding.
