65 77 720 Removing and installing (replacing) left B-pillar sensor

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: NOTE AIRBAG SAFETY INSTRUCTIONS !
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Disconnect battery negative lead and cover
Remove REAR BOTTOM SIDE TRIM PANEL

Press floor lining (1) to one side.

Unfasten screws (2).

Tightening torque 65 77 3AZ .

Remove B-pillar sensor (3).

Disconnect associated plug connection.

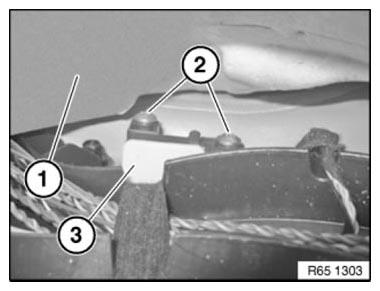

Fig 1: Identifying Press Floor Lining And B-Pillar Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
