65 77 534 Removing and installing/replacing front right sensor (US version only)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1), tightening torque 65 77 6AZ .

Unfasten plug connection (2) and disconnect.

Remove front right sensor (3) from front panel.

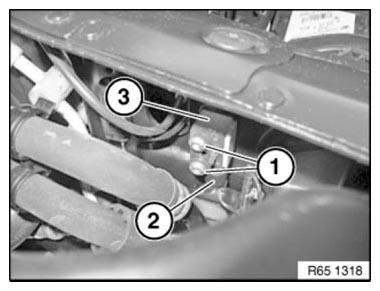

Fig 1: Identifying Front Right Sensor With Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
