65 77 016 Removing and installing/replacing airbag control unit

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: NOTE AIRBAG SAFETY INSTRUCTIONS!
Incorrect handling can activate airbag and cause injury.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION ).

Necessary preliminary tasks:

DISCONNECT BATTERY NEGATIVE LEAD and cover.
Remove COMPLETE CENTRE CONSOLE .

Unlock plug connections (1) and disconnect.

Unscrew nuts (2).

Tightening torque 65 77 1AZ .

Remove airbag control unit (3).

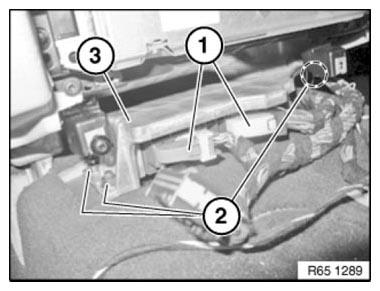

Fig 1: Identifying Airbag Control Unit With Plug Connections And Mounting Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding.
