65 20 150 Removing and installing/replacing back-up aerial

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove COMPLETE CENTRE CONSOLE .

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove back-up aerial (3) towards top from tunnel (4).

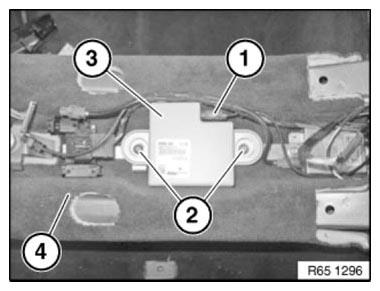

Fig 1: Identifying Back-Up Aerial With Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
