65 13 188 Removing and installing/replacing mid-range speaker (in upper partition panel)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Lever out rear speaker trim (1) with special tool 00 9 323 from partition panel (2) and remove.

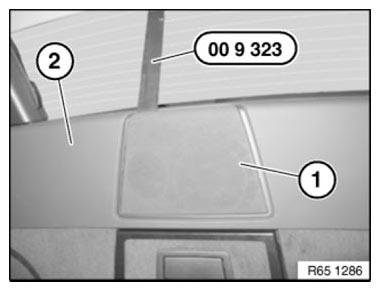

Fig 1: Removing Rear Speaker Cover Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Lever plug connection (1) out of mounting and disconnect.

Unfasten screws (2).

Feed out speaker (3) towards front and disconnect associated plug connection.

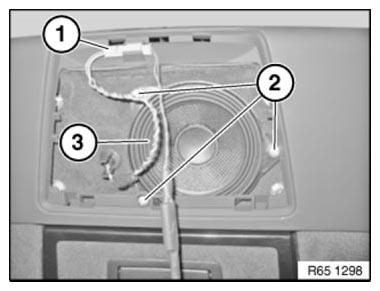

Fig 2: Identifying Speaker With Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
