65 13 100 Removing and installing/replacing tweeter (in upper partition panel)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Lever out rear speaker cover (1) with special tool 00 9 323 from partition wall panel (2) and remove.

Fig 1: Removing Rear Speaker Cover Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

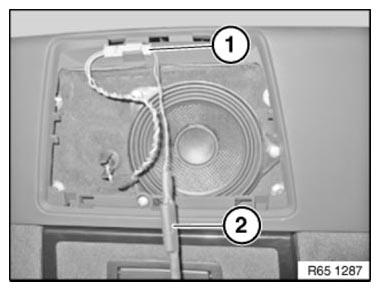

Lever out plug connection (1) at resistor (2) and disconnect.

Fig 2: Identifying Plug Connection And Resistor

Courtesy of BMW OF NORTH AMERICA, INC.

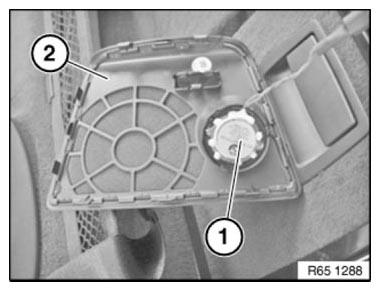

Unclip tweeter (1) from rear speaker cover (2) and remove.

Fig 3: Identifying Rear Speaker Cover Tweeter

Courtesy of BMW OF NORTH AMERICA, INC.
