65 13 060 Removing and installing/replacing speaker (midrange speaker, in instrument panel)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim (1) with special tool 00 9 317 from catches and remove towards top.

Fig 1: Opening Trim Using Special Tool (00 9 317) From Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) on speaker trim (2) must be correctly seated on associated lugs and must not be damaged.

Fig 2: Identifying Retainers On Speaker Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove speaker (2).

Disconnect plug connection underneath.

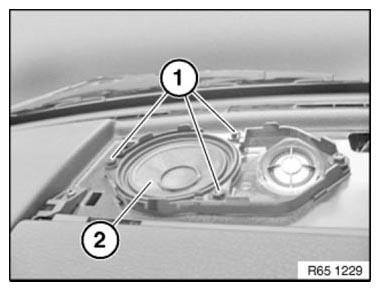

Fig 3: Identifying Speaker With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
