65 11 072 Removing and installing/replacing CD changer

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove RIGHT GLOVEBOX WITH HOUSING
Clamp off BATTERY NEGATIVE LEAD

Release screws (1).

Remove CD changer (2) from glovebox.

Fig 1: Identifying CD Changer With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

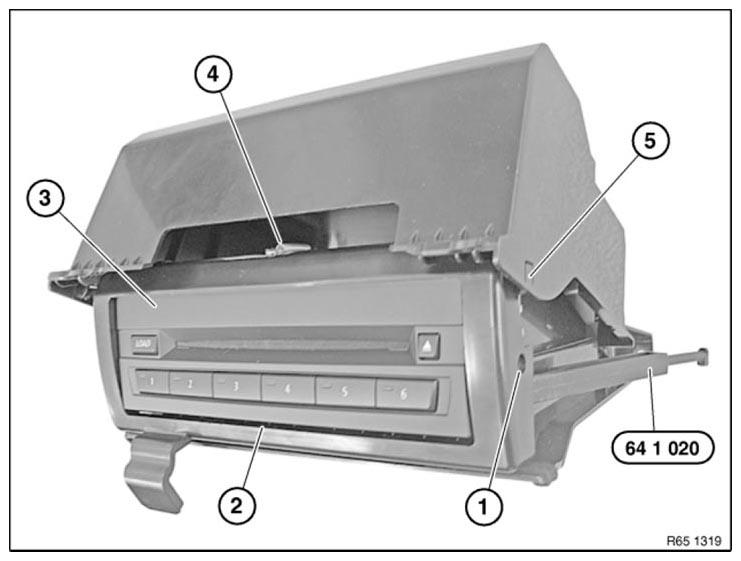

Fig 2: Opening CD Changer Side Catches Using Special Tool (64 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unlock side catches (1) on front trim (2) with special tool 64 0 020.

Remove front trim (2) towards front from CD changer.

Disconnect spring (4).

Unlock side catches (5) with special tool 64 1 020.

Remove front trim (2).

Pull CD changer (3) forwards out of holder.

Replacement

Carry out vehicle programming and encoding.
