54 37 295 Emergency closing hardtop

Necessary preliminary tasks

• Open rear lid
• REMOVE TRUNK FLOOR

Always execute all movements of the roof module with the assistance of a second person.

Risk of injury by trapping!

Remove foam cover.

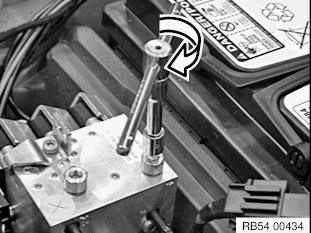

Open screws on hydraulic unit 1.5 turns.

Fig 1: Opening Screw Of Hydraulic Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Inserting Special Tool 54 0 330 Between Convertible Top Compartment Lid Frame And Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

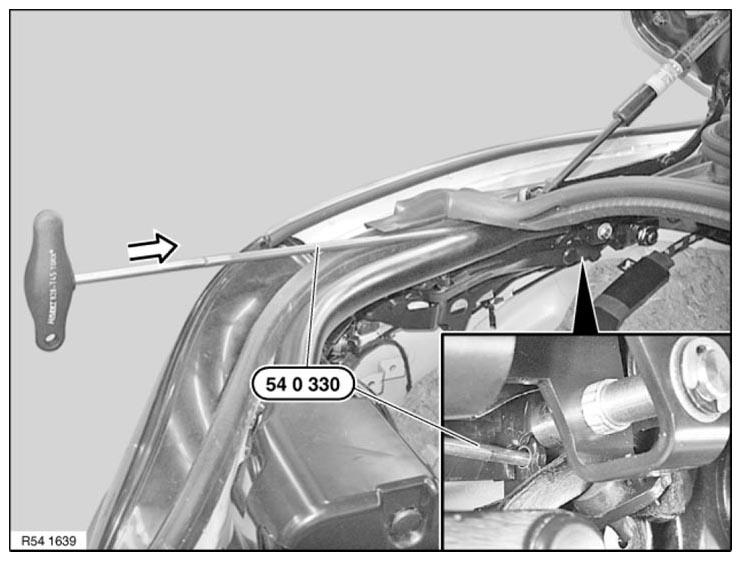

Insert special tool 54 0 330 at rear left and right between convertible top compartment lid frame and side panel.

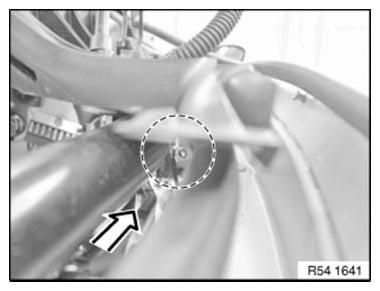

Feed in tip of special tool through bore hole.

Fig 3: Installing Tip Of Special Tool Through Bore Hole

Courtesy of BMW OF NORTH AMERICA, INC.

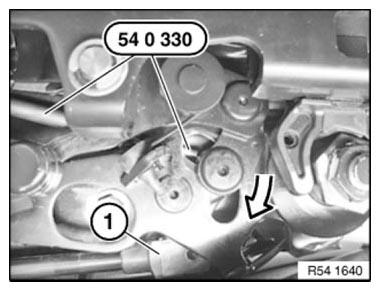

Tip of special tool 54 0 330 must butt against joint for hydraulic cylinder (1).

Fig 4: Identifying Hydraulic Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

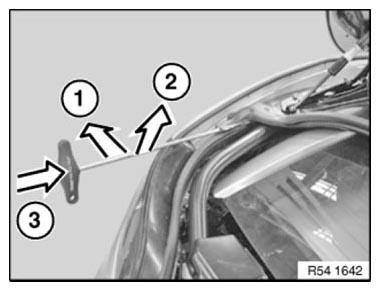

For the ideal pressure point of special tool on joint, proceed as follows:

1. Press outwards
2. Pull tool upwards
3. Press tool to unlock convertible top compartment lid latch

Fig 5: Pressing Tool To Unlock Convertible Top Compartment Lid Latch

Courtesy of BMW OF NORTH AMERICA, INC.

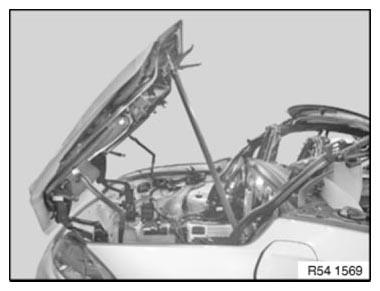

Open convertible top compartment lid.

Fig 6: Opening Convertible Top Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

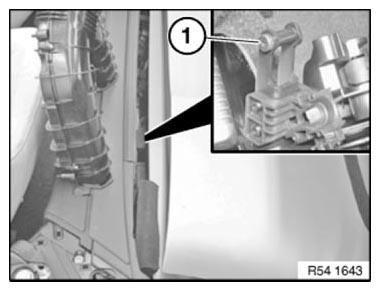

Release screws (1) on left and right from holder.

Fig 7: Identifying Holder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

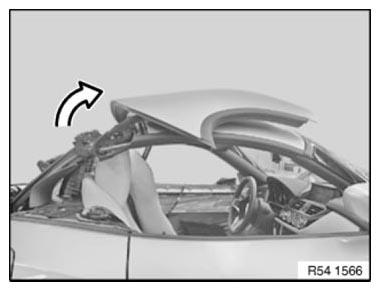

Lift out roof shells uniformly with a 2nd person helping and set down.

Fig 8: Lifting Of Roof Shells

Courtesy of BMW OF NORTH AMERICA, INC.

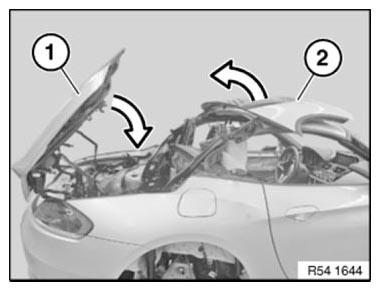

Remove support for convertible top compartment lid (1) and set down convertible top compartment lid.

Raise rear roof shell (2) and remove ROOFLINER .

Set down roof shell (2) towards rear (convertible top closed).

Remove ROOFLINER  for roof shell at front.

Fig 9: Raising Rear Roof Shell

Courtesy of BMW OF NORTH AMERICA, INC.

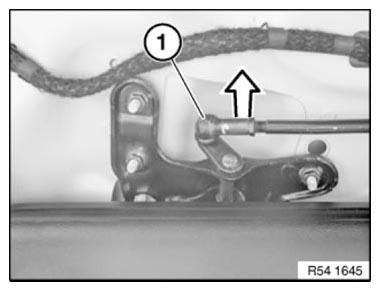

Slide open retaining clip (1) and unclip ball head.

Secure control rod on left and right with cable tie to prevent them hanging down and rattling.

Fig 10: Sliding Open Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

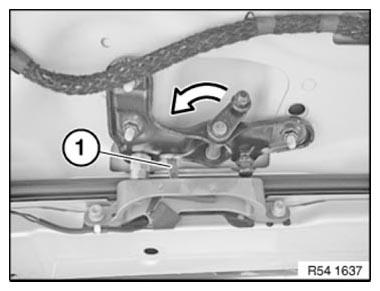

Lock retaining hook (1) on left and right.

Turn retaining hook (1) with pliers over dead center.

Fig 11: Turning Retaining Hook Using Pliers Over Dead Centre

Courtesy of BMW OF NORTH AMERICA, INC.

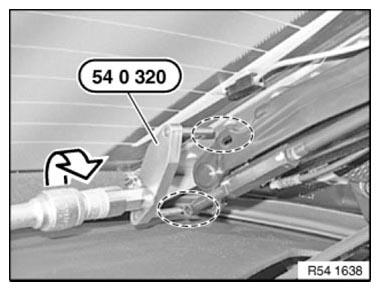

Insert special tool 54 0 320 in convertible top frame and lock rear roof shell on left and right.

Fig 12: Inserting Special Tool 54 0 320 On Convertible Top Frame

Courtesy of BMW OF NORTH AMERICA, INC.
