54 37 160 Removing rear module

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Connect battery charger
Remove LOADING SILL END COVER
Remove TRIM FROM REAR APRON

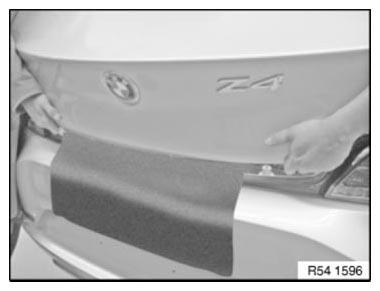

Open convertible top compartment lid.

IMPORTANT: Convertible top compartment lid may tilt forwards and must be supported with suitable apparatus.

Fig 1: Opening Convertible Top Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

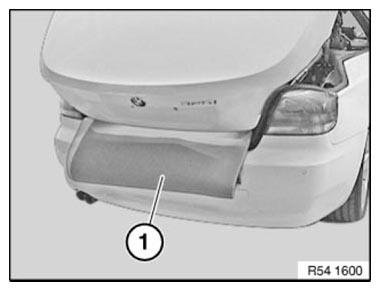

Generously cover bumper area (loading sill) with protective covers (1).

Fig 2: Cover Bumper Area (Loading Sill) With Protective Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Measure distance A between rear module kinematics.

Installation:

Adjust distance A.

Basic adjustment dimension e.g. for replacement:

A = 770.3 mm.

Fig 3: Adjusting Distance Between Rear Module Kinematics

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Rear lid must be closed.

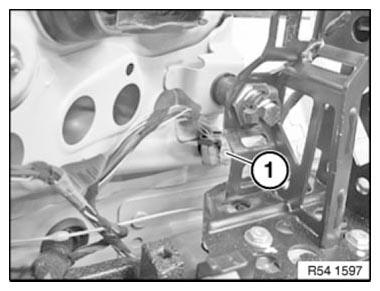

Unlock and disconnect plug connection (1) on right main bearing.

Fig 4: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

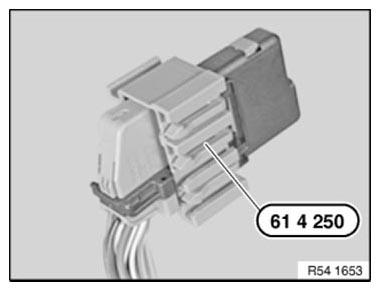

Connect special tool 61 4 250 to vehicle-side plug for rear module.

NOTE: Adapter simulates closed rear lid. Retractable hardtop without rear lid not in working order.

Fig 5: Identifying Special Tool 61 4 250 To Vehicle-Side Plug For Rear Module

Courtesy of BMW OF NORTH AMERICA, INC.

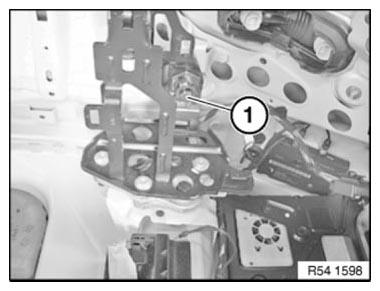

Release left and right screws (1).

Tightening torque 54 34 1AZ .

NOTE: Do not adjust barrel screws.

Replacement only:

Bring barrel screws into contact with special tool 54 0 180 in conjunction with special tool 00 9 450.

Tightening torque 54 34 10AZ .

Fig 6: Identifying Barrel Screw

Courtesy of BMW OF NORTH AMERICA, INC.

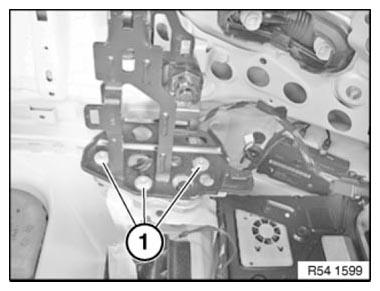

NOTE: Before removing, mark position of screws (1) to ensure correct alignment during installation.

Do not release screws.

Fig 7: Identifying Barrel Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Proceed with the greatest possible caution when carrying out the following tasks.
Risk of damage!
Two persons are essential for helping to carry out the following tasks.

IMPORTANT: Rear module sinks if incorrectly supported. Risk of damage!

Position a helper on both the left and right sides of the rear module.

Grip rear module with two hands on rear module kinematic assembly and support in Z-direction.

NOTE: Bracket is double-jointed and bends.

Fig 8: Positioning Helper On Both Sides Of Rear Module

Courtesy of BMW OF NORTH AMERICA, INC.

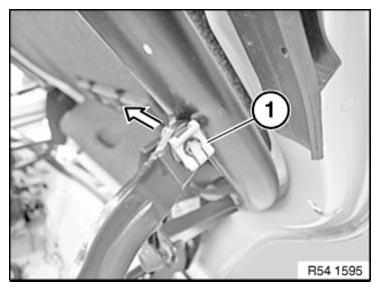

Unlock and detach retainers (1) on left and right.

Drive out pin.

Fig 9: Disconnecting Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right from bearing support.

Tightening torque 54 34 13AZ .

Remove rear module.

Set down rear module on a suitable surface.

IMPORTANT: Do not damage any surrounding parts.

Fig 10: Identifying Bearing Support Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check 41 00... BODY GAP DIMENSIONS and if necessary adjust

Carry out diagnosis.
