54 37 090 Removing and installing/replacing left or right Convertible lock
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove FRONT ROOFLINER
- Open Convertible top.
Installation:
- Microencapsulated nuts (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated nuts must not be retightened
- Threads of threaded bolts must be cleaned beforehand in event of repeated use

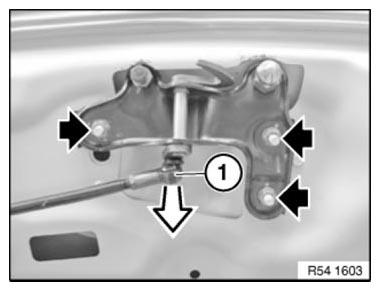

Slide open retaining clip (1) and unclip ball head.
NOTE:
Before removing, mark position of nuts to ensure correct alignment when installing.
Unscrew nuts (2).
Tightening torque 54 37 12AZ .
Installation:
Replace nuts.
Replacement only:

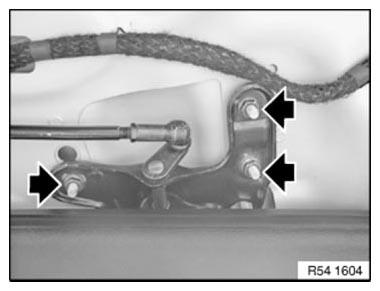

Screw on new fasteners loosely.
Fastener should still be able to be slid in order to center itself.
Close convertible top.
Fasteners glide into place.
Tighten nuts.
Tightening torque 54 37 12AZ .
Check 41 00... BODY GAP DIMENSIONS and if necessary adjust
