54 37 005 Replacing front roof shell seal

Necessary preliminary tasks

• Remove ROOF LINING
• Partially open convertible top

Remove seal (1).

Installation:

Slide seal flush onto windscreen frame seal.

Make sure seal (1) is SECURELY MOUNTED on seal carrier.

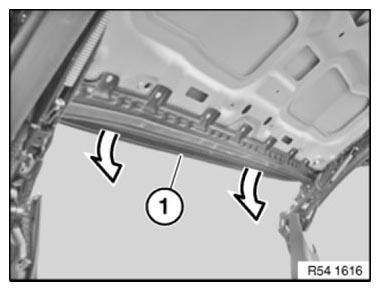

Fig 1: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sealing lip on windscreen frame seal must not be distorted when roof shell seal retracts.

If the sealing lip is distorted, the roof shell seal must be pushed further forwards.

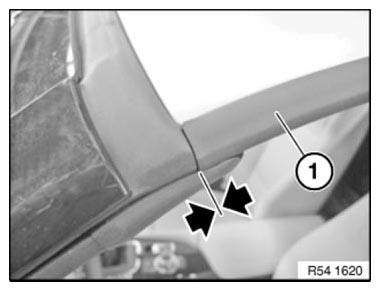

Fig 2: Identifying Windscreen Frame Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Installation:

Adjust gap dimension, seal carrier to roof shell.

= 2 mm ±1 mm

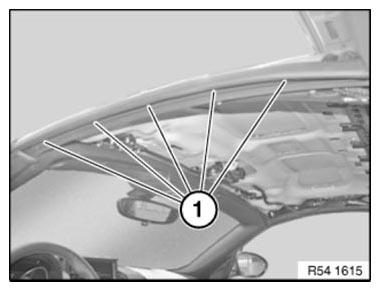

Fig 3: Identifying Roof Shell Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Before installing the seal carrier, fit a butyl pad (1) and a butyl ball (2) at the front corners of the roof shell.

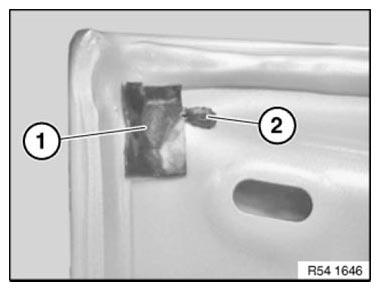

Fig 4: Identifying Butyl Pad And Butyl Ball Of Roof Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Grease contact points of seal carrier and cowl panel seal with Vaseline.

Slide seal carrier (1) fully onto cowl panel seal and screw down.

Tightening torque 54 37 14AZ .

If necessary, ADJUST windscreen frame seal to roof shell seal.

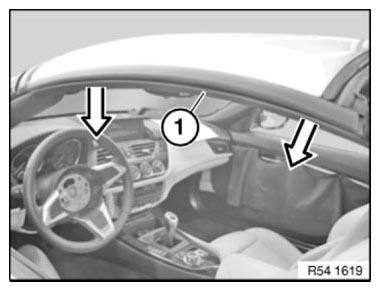

Fig 5: Identifying Seal Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Detach seal (1) from seal carrier.

Installation:

Cleanly push on seal from rear, starting on left and right, into corners.

Push on seal in one operation, as sealing lip may kink.

Check kink-free position of sealing lip between roof shell and seal carrier using a torch.

If necessary, repeat procedure.

Make sure seal (1) is SECURELY MOUNTED on seal carrier.

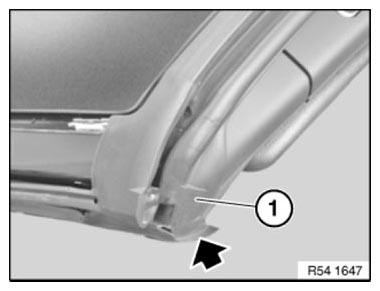

Fig 6: Disconnecting Seal From Seal Chamber

Courtesy of BMW OF NORTH AMERICA, INC.

Check retraction depth of windows and ADJUST if necessary.

If necessary, adapt number of washers.
