52 14... Performing function check with adapter cable (for seat repairs)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The function check on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 360.

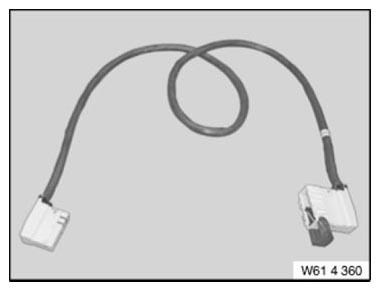

Fig 1: Identifying Adapter Cable (61 4 360)

Courtesy of BMW OF NORTH AMERICA, INC.

Use:

Adapter cable 61 4 360 is connected to vehicle wiring harness (1) and removed seat (2).

Fig 2: Connecting Adapter Cable (61 4 360) To Vehicle Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.
