52 13... Removing and installing Isofix holder
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove seat fabric See 5213400 Replacing seat cover on left or right front seat (normal/manual) or 5215400 Replacing seat cover for left or right front seat (sport/manual)

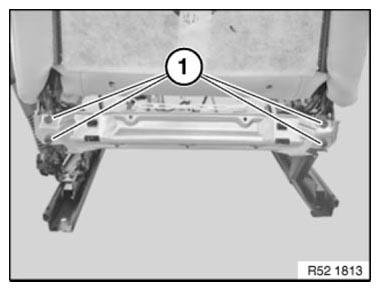

Release screws (1).
Tightening torque 52 10 07AZ .
Remove Isofix holder.
