63 99 273 Replacing bulb for left (or right) front turn indicator

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by specialist personnel.
Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

NOTE: Front wheel removed for purposes of clarity.

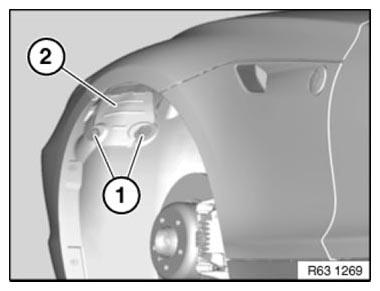

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.

Fig 1: Identifying Turn Indicator Unit Cover With Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

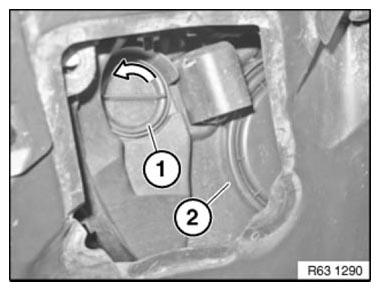

Turn bulb holder (1) approx. 30° counterclockwise and remove from headlight (2).

Fig 2: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb with socket (1) in direction of arrow and remove from bulb holder (2) towards top.

Installation:

Make sure bulb with socket (1) and sealing ring (3) on bulb holder (2) are fitted correctly.

Note BULB TYPE .

Fig 3: Identifying Sealing Ring On Indicator Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
