63 31 180 Replacing LED for front door trim panel light (left or right)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove FRONT LEFT DOOR TRIM PANEL

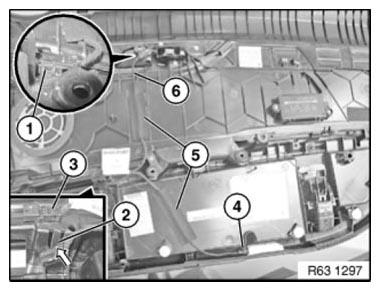

Unlock LED for door opener (1) and remove towards top.
Unlock LED for storage compartment (2) and remove in direction of arrow.
Unlock bushing (3).
Disconnect plug connection (4).
Detach adhesive tape (5) and remove LED (1/2).
Installation:
Make sure LED (1/2) is correctly seated.
Replace adhesive tape (5).
