63 31 080 Removing and installing/replacing luggage compartment light
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Follow instructions for handling light bulbs (interior lights).

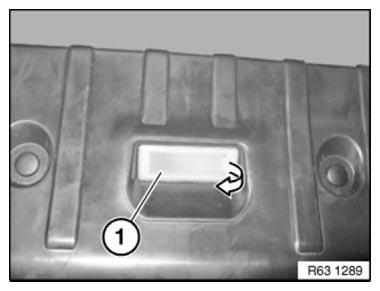

Lever out luggage compartment light (1) in direction of arrow.
Disconnect associated plug connection and remove luggage compartment light (1).
Replacement:
If necessary, remove BULB .
