63 12 870 Replacing ignition unit for left xenon headlight (with xenon bulb)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the voltage supply (lighting system and ignition off).
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
NOTE:
Front wheel removed for purposes of clarity.
Unlock fasteners (1) by turning counterclockwise through 180° and remove cover (2).

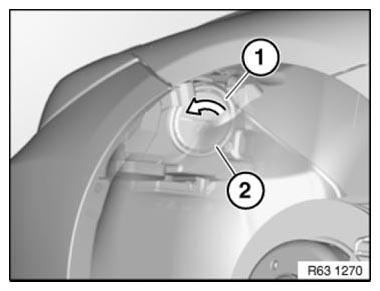

Turn protective cap (1) in the direction of the arrow and remove.
Installation note:
Protective cap (2) must be correctly engaged.
Check seal.
Replace protective cap (2) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .

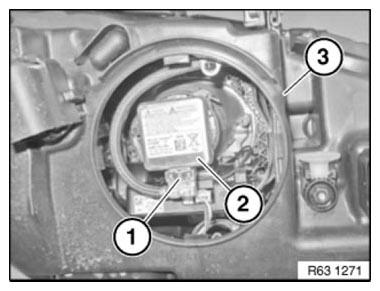

Disconnect plug connection (1).
Turn ignition unit for xenon headlight (2) approx. 30° counterclockwise and detach from headlight (3).
Installation note:
Make sure inner ring is correctly positioned in ignition unit for xenon headlight (2).
