63 10 004 Adjusting headlights
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
COMPLY WITH TEST PRECONDITIONS FOR HEADLIGHT ADJUSTMENT .
IMPORTANT:
Do not damage adjusting screws when adjusting headlights.

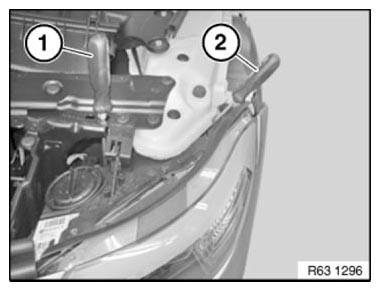

Carry out headlight adjustment at adjusting screws below openings (1) and (2).
- Adjustment screw primarily for vertical adjustment
- Adjustment screw primarily for lateral adjustment
