37 15 055 Removing and installing/replacing EDC control unit

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Release screws (1).

Remove electronics box cover (2).

Fig 1: Identifying Electronics Box Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

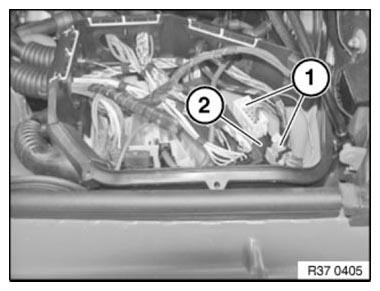

Unlock plug connections (1) and disconnect.

Unlock control unit (2) and remove upwards from holder.

Fig 2: Identifying Plug Connection And Control Unit Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Carry out programming/coding.
