37 14 027 Removing and installing/replacing rear mounted acceleration sensor

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

Remove RIGHT LUGGAGE COMPARTMENT TRIM PANEL

Unfasten plug connection (1) and disconnect.

Release nuts (2) and remove mounted acceleration sensor (3).

Tightening torque 37 14 8AZ .

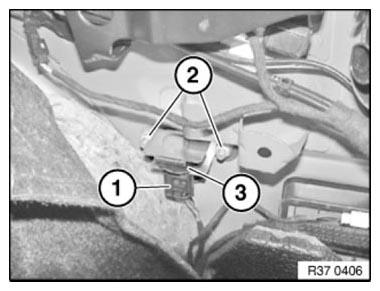

Fig 1: Identifying Plug Connection And Acceleration Sensor With Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
