37 14 017 Removing and installing/replacing front mounted acceleration sensor

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks

Remove FRONT WHEEL ARCH TRIM

Unfasten plug connection (1) and disconnect.

Release screws (2) and remove mounted acceleration sensor (3).

Tightening torque 37 14 8AZ .

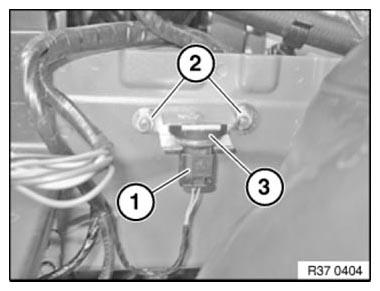

Fig 1: Identifying Plug Connection And Acceleration Sensor With Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
