41 51 004 Adjusting Left Or Right Front Door

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage adjoining body parts.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.

NOTE: Observe BODY GAP DIMENSIONS .
The door must be provided with all attachment parts for correct adjustment.
Adjust screwed body parts from rear to front.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken lock striker, remove if necessary.

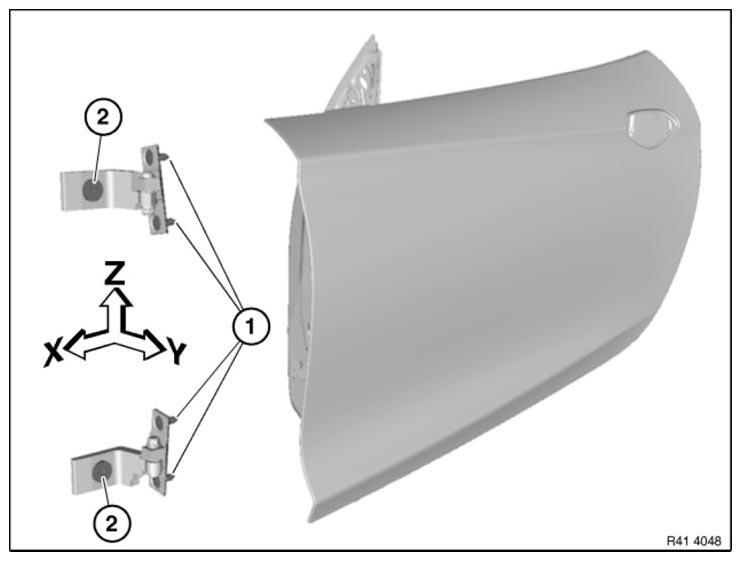

Height adjustment (Z) :

Slacken screws (1) until door can still just be moved. Adjust height of door.

If the range of adjustment is not sufficient, also slacken screws (2) and adjust height of door.

NOTE: Carry out adjustment in longitudinal direction (X) and in transition to side panel (Y) for hinges only, as otherwise height adjustment is lost.

Adjusting in longitudinal direction (X):

Slacken screw (2) on upper hinge and adjust door in longitudinal direction. Then adjust door at lower hinge in longitudinal direction.

Adjusting in transition to side panel (Y):

Slacken screws (1) on upper hinge and adjust door in transition to side panel. Then adjust door at lower hinge in transition to side panel.

Tightening torque 41 51 2AZ AND 41 51 3AZ .

Check that adjoining body parts are flush in terms of height and correct if necessary.

NOTE: Vertical adjustment of door must not be influenced by lock striker.
When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratches.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1) until lock striker can still just be moved.

Move lock striker sideways in order to adjust transition between door and rear side panel.

Tightening torque 51 21 3AZ .

NOTE: When the door is closed, the lock striker must not touch or scrape against the door lock. Look out for scratches.

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

If the hinge is slackened on the body side, the area of the hinge must be sealed in a u-shape with sealant (1).

Courtesy of BMW OF NORTH AMERICA, INC.
