41 35 111 Replacing Rear Right Side Panel
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Do not damage adjoining body parts.
Installation information:
BODY GAP DIMENSIONS serve as basis for adjustment tasks.

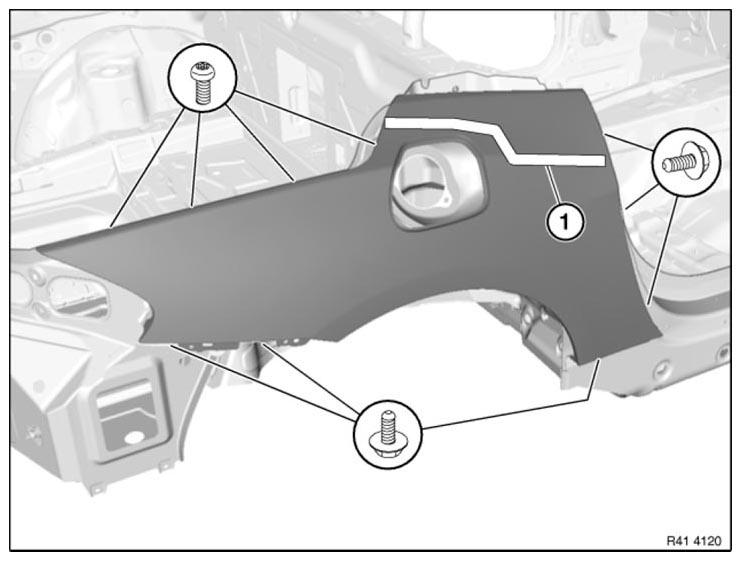

Release screws.
Tightening torque 41 35 5AZ .
IMPORTANT:
Risk of damage!
Heat side panel in area of cavity acoustic baffle (2) with hot-air blower and carefully remove.
Heat side panel in area of cavity acoustic baffle (2) with hot-air blower and carefully remove.
Installation:
Apply sealant to cavity acoustic baffle.

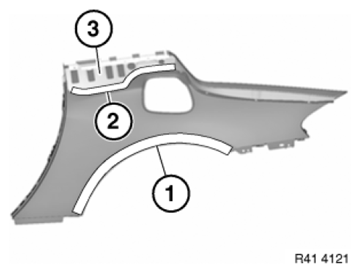

Also apply sprayable sealing compound on inside of side panel in area (1). Width approx. 50 mm.
When reusing the side panel:
- If necessary, apply sealing compound in area (2) between side panel and reinforcement (3).
