41 35 101 Replacing Rear Left Side Panel
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Do not damage adjoining body parts.
Installation information:
BODY GAP DIMENSIONS serve as basis for adjustment tasks.

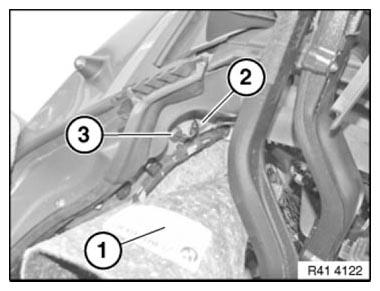

Partially detach trim panel (1).
Unlock and disconnect plug (2) for aerial.
Feed aerial line through hole (3).

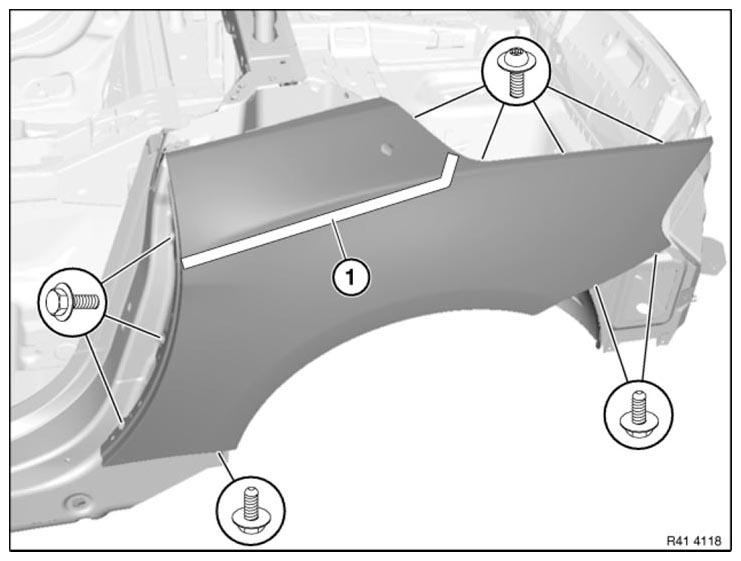

Release screws.
Tightening torque 41 35 5AZ .
IMPORTANT:
Risk of damage!
Heat side panel in area of cavity acoustic baffle (2) with hot-air blower and carefully remove.
Installation:
Apply sealant to cavity acoustic baffle.

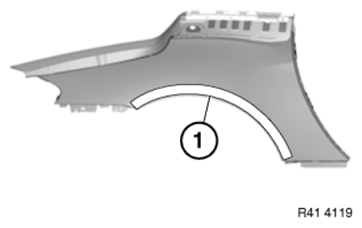

Also apply sprayable sealing compound on inside of side panel in area (1). Width approx. 50 mm.
