41 00... Stamping Vehicle Identification Number (Needle Stamping Unit)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with GENERAL INFORMATION .

The needle stamping system 360 - VRM - BMW is required to stamp the vehicle identification number.

Order number: 81 43 2 155 736

Courtesy of BMW OF NORTH AMERICA, INC.

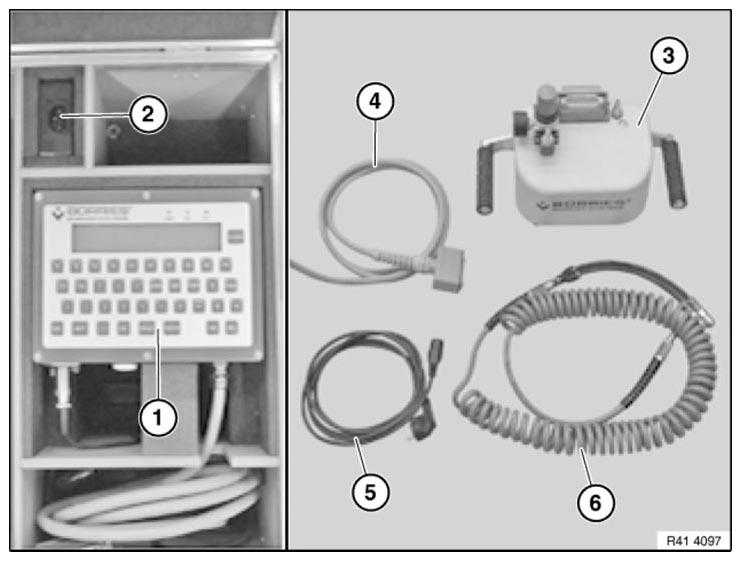

The needle stamping system 360 tool set comprises:

(1) Display
(2) Mains adapter
(3) Needle stamping unit
(4) Connecting cable
(5) Power cable
(6) Compressed-air hose

NOTE: A compressed-air connection is also required.

Operating pressure approx. 4 bar
Use only dried, oil-free air

Procedure for additional vehicle identification number

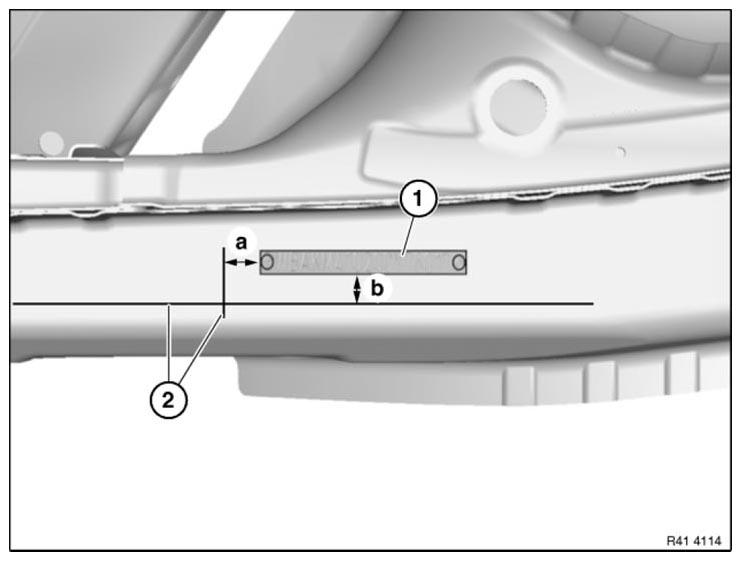

Cross through original vehicle identification number.

Courtesy of BMW OF NORTH AMERICA, INC.

(1) = original vehicle identification number.

Mark position lines (2) in accordance with specified dimensions/measurements.

Measurement a = 12 mm

Measurement b = 10 mm

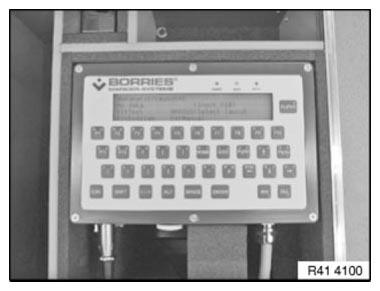

Display input:

Select Layout 5 with arrow button.
Enter vehicle identification number with F10.
Press "ENTER" button.

NOTE: With Layout 5 the vehicle identification number (line 1) is crossed through.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Perform stamping operation with position lines in advance on a test sheet.

Courtesy of BMW OF NORTH AMERICA, INC.

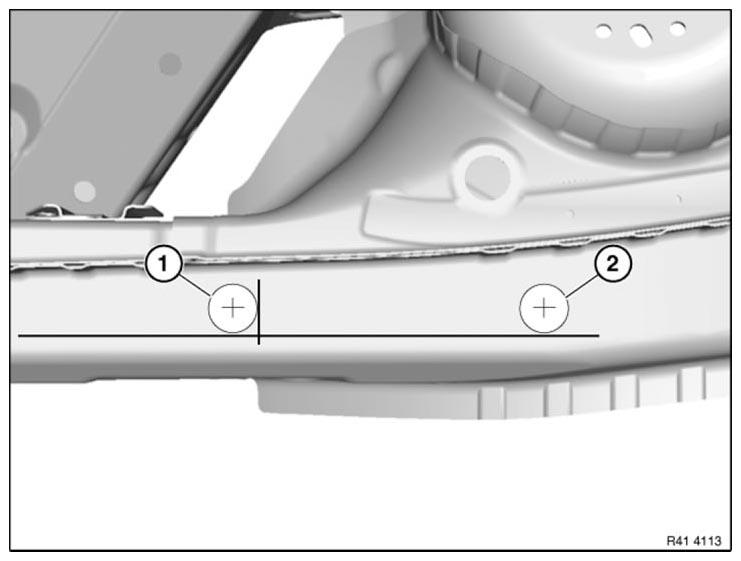

Move suction feet of needle stamping unit to positions (1) and (2) shown.

First adjust position (1)
Then adjust position (2)

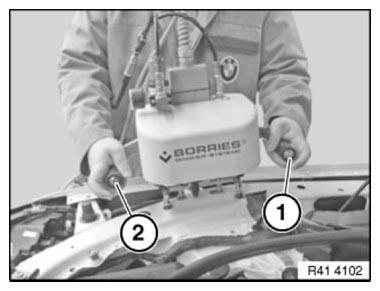

Press push button (1) for vacuum pressure.

Then start stamping operation with push button (2).

After completing the stamping operation, switch off vacuum and set unit down.

Courtesy of BMW OF NORTH AMERICA, INC.

Stamping second vehicle identification number

NOTE: The second vehicle identification number is stamped at the height of the spring strut dome.

Courtesy of BMW OF NORTH AMERICA, INC.

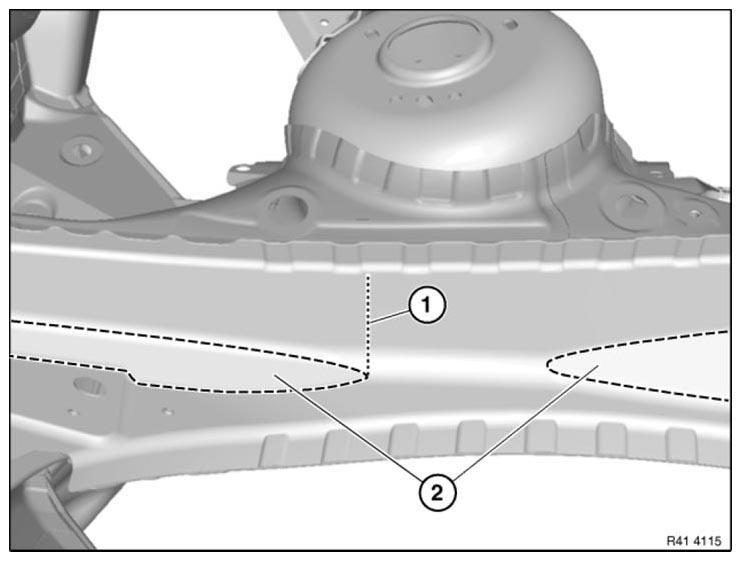

Mark help line (1) in accordance with reference surfaces (2).

Courtesy of BMW OF NORTH AMERICA, INC.

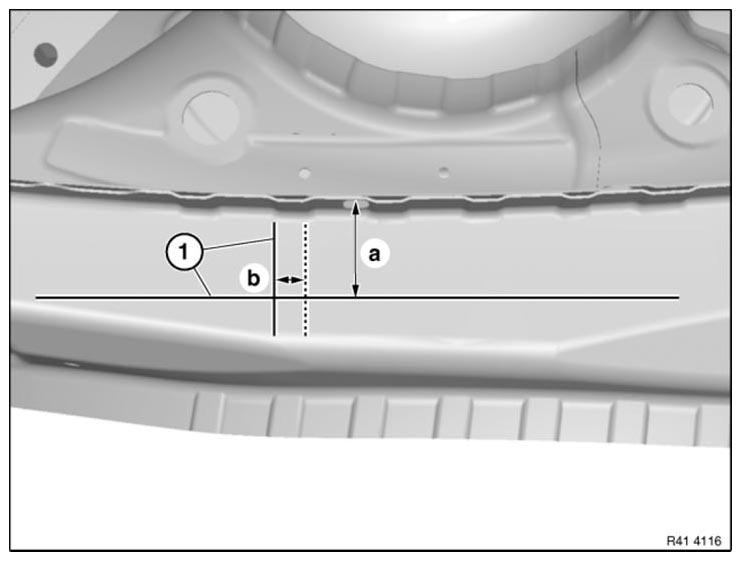

Mark position lines (1) in accordance with specified dimensions/measurements.

Measurement a = 45 mm

Measurement b = 15 mm

Display input:

Select Layout 1 with arrow button.
Press "ENTER" button.

NOTE: With Layout 1 the already entered vehicle identification number is stamped in line 1.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Perform stamping operation with position lines in advance on a test sheet.

Courtesy of BMW OF NORTH AMERICA, INC.

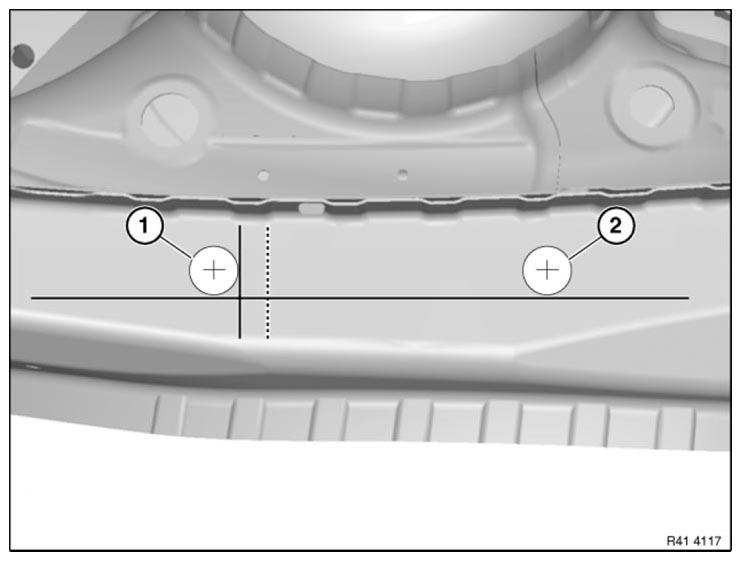

Move suction feet of needle stamping unit to positions (1) and (2) shown.

First adjust position (1)
Then adjust position (2)

Press push button (1) for vacuum pressure.

Then start stamping operation with push button (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Following layout functions are available:

LAYOUT FUNCTION CHART

Layout selection	Vehicle identification number
Layout 1	In line 1
Layout 2	In line 2
Layout 3	Turned through 180° in line 1
Layout 4	Turned through 180° in line 2
Layout 5	Cross through in line 1
Layout 6	Cross through in line 2
