41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Protection measures!
- Wear safety goggles
- Wear protective gloves
IMPORTANT:
To prevent the material from tapering, do not drill out the rivet head.

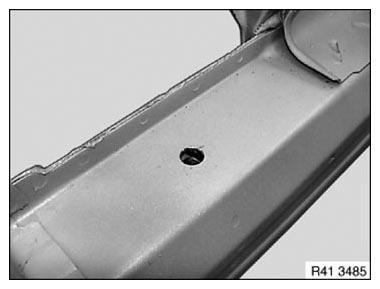

- Carefully spot-drill rivet head with a larger drill bit/countersinkIMPORTANT: Avoid paintwork damage
- Knock rivet head away with a chisel
- Drive through rivet shank into cavity, remove if necessary
- Clean component, eliminate paintwork damage if necessary
If the rivet shank can be removed:
IMPORTANT: To avoid corrosion, stop chips/swarf by means of cavity sealing.
Follow INSTRUCTIONS ON CORROSION PROTECTION . - Preserving cavity
If the rivet shank cannot be removed:
WARNING: Risk of injury!
Observe NOTES ON CAVITY FOAM .IMPORTANT: To avoid corrosion and rattling noises, stop chips/swarf and rivet nut shank with cavity foam.
Remove foam remnants with isohexane (benzine).5. Stop rivet shank by means of specific foaming
- Set rivet nut with hand rivet gun
NOTE:
Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.
Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308
IMPORTANT:
Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.
Make sure rivet nut correctly contacts component.
NOTE:
According to the manufacturer, the pictured tool is suitable up to an M8 thread
Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512
IMPORTANT:
Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.
Make sure rivet nut correctly contacts component.
NOTE:
According to the manufacturer, the pictured tool is suitable up to an M12 thread
