67 62 000 Removing and installing or replacing flat motor for front left or right power window unit

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Close window in front door
Remove SOUND INSULATION on front door

Release screws (1).

Tightening torque 51 21 16AZ .

Remove adapter for door speaker (2).

Fig 1: Identifying Door Speaker With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 33 5AZ .

Remove power window motor (2) from door (4).

Installation:

Power window motor (3) must be correctly seated in pole retainer (3).

Fig 2: Identifying Power Window Motor With Pole Retainer And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

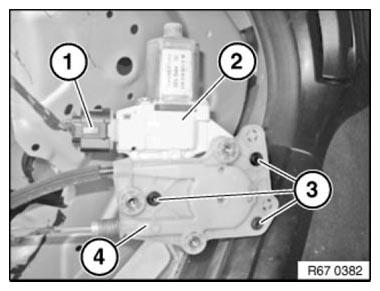

Unlock plug connection (3) and disconnect.

Release screws (3).

Tightening torque 67 62 1AZ .

Detach flat motor for power window unit (2) from power window unit adapter plate (4).

Installation:

INITIALIZE POWER WINDOW .

Fig 3: Identifying Door Speaker With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
